Pride Jazzy 614 HD Power Wheelchair

SKU: J614HD B
$3,864.00
Excl. tax

Heavy duty and all-terrain power chair with advanced suspension for high performance in varied terrains. Dual motors for greater efficiency, torque, and performance. A performance wheelchair to get you places others can't with power and ease.

The rating of this product is 0 out of 5

(0)
Order Now (Delivery timeframe:Usually ships within 3-6 days)


Power and precision combined

Power and precision combine into one exceptional power chair! The Jazzy® 614 HD features outstanding suspension and a tight turning radius. Large drive wheels and six-inch casters tackle uneven terrain, no matter where your day takes you.

Features

  • 450 lbs. weight capacity
  • Up to 4.25 mph maximum speed
  • 22.75" turning radius
  • Up to 11 miles per charge
  • Deluxe contour, limited recline high back seat
  • 6" casters on front & rear for maximum stability
  • Universal, fixed, in-line joystick mount
  • Dual enhanced in-line motors for greater efficiency, torque, range and performance
  • 6” casters on front and rear for maximum stability

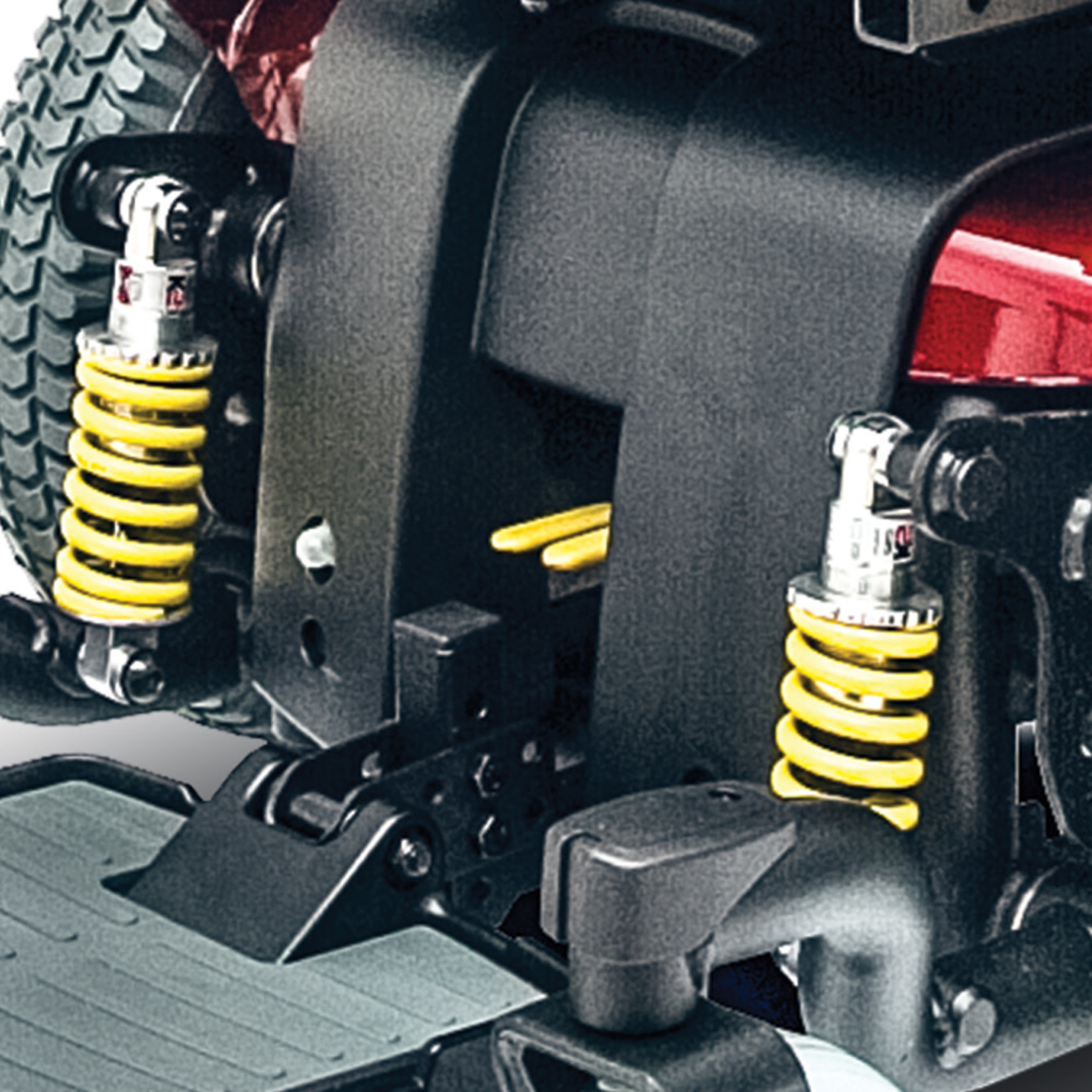

  • Active-Trac® ATX Suspension for enhanced performance over more varied terrain
  • Easy rear access to batteries
  • Seating up to 24” W x 24” D
  • Toolless shroud removal
  • Easy serviceability
  • Flip-up, height-adjustable foot platform
  • HCPCS Code: Group 2: Heavy Duty (K0824/K0825)

*Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments

Weight Capacity 450 lbs.
Turning Radius 22.75"
Base Width 25.125"
Base Length 35.5"/40" with footplate
Max Speed Up to 4.25 mph
Front Wheels 6" solid casters
Drive Wheels 14" foam filled
Rear Wheels 6" solid casters
Ground Clearance 2.25"
Drivetrain Two motor, in-line, Mid-Wheel 6®
Braking System Regenerative and electro-mechanical
Suspension Active-Trac® (ATX) with Mid-wheel 6® Technology
Seat Size 20" x 18"-20" 22" x 20"-22" (standard), 24"W x 24"D (high back), 24”W – 24”D (synergy)
Seat to Floor Height 20.5” – 23.5” (high back), 17.75” – 19.75” (synergy)
Seat Weight 18" wide - 51.8" lbs. 20" wide - 54 lbs. 22" wide - 57.6 lbs. (standard)
Drive Electronics 40A Dynamic LiNX
Battery Type 12 volt, NF-22
Battery Weight 38 lbs. each
Battery Charger 5A, off-board
Backrest Heights
Range Up to 14 miles
Weight of Heaviest Piece 122 lbs.
Total Weight 240 lbs
HCPCS Code Group 2: Heavy Duty (K0824/K0825)
Maximum Slope
Colors Available Candy Apple Red, Viper Blue
Warranty 5-year limited on frame; 13-month limited on electronics; 13-month on drive motors; 13-month limited on batteries.
Shipping Weight 290 lbs
Shipping Dimensions 33" x 30" x 20"
